High Speed DC 24V Brushless Motor

17000 High speed BLDC motor, 3 phase 12V (24V), 47W, rated torque 46.3 mN.m. The design is designed to meet the need for high performance small motors with an external driver controller that can vary the speed via PWM or 0~5V signals. The High Speed DC 24V Brushless Motor uses preloaded NBM ball bearings to take advantage of the long life offered by the brushless design particularly well. With the characteristics of high torque, low noise, long life, high efficiency, stable operation, low interference, etc., it is widely used in household appliances, medical equipment, industrial equipment, commercial equipment, personal care, small appliances, coffee machines, milk tea machines, centrifuges , medical mixers, micropumps, printers, projectors, ATM machines, massagers, etc., can be customized according to customer needs

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VBL-3650
Usage	Household appliances, medical equipment, industrial equipment, commercial equipment, personal care, small appliances, coffee machines, milk tea machines, centrifuges, medical mixers, micro pumps, printers, projectors, ATM machines, massagers, etc.
Type	Brushless DC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customized
Efficiency	83%
Rated Voltage	24V
No Load Speed	17169
Load Speed	14874
No Load Current	0.413
Starting Torque	222.2 mN.m
Product Name	Micro  Brushless DC Motor
Power	2.0-50W
Direction of rotation	CW&CCW
Payment terms	30% advance, 70% balance
Critificate	IATF16949
Customized	Acceped

Product Description

Independent R&D organization offering OEM and ODM services to fit your specific needs.

The information above is given primarily for reference purposes; different versions of micro brushless DC motors may have different types and features.



Product Parameter



VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
8-26	24	17169	0.413	14874	2.676	29.704	46.267	222.2	17.3

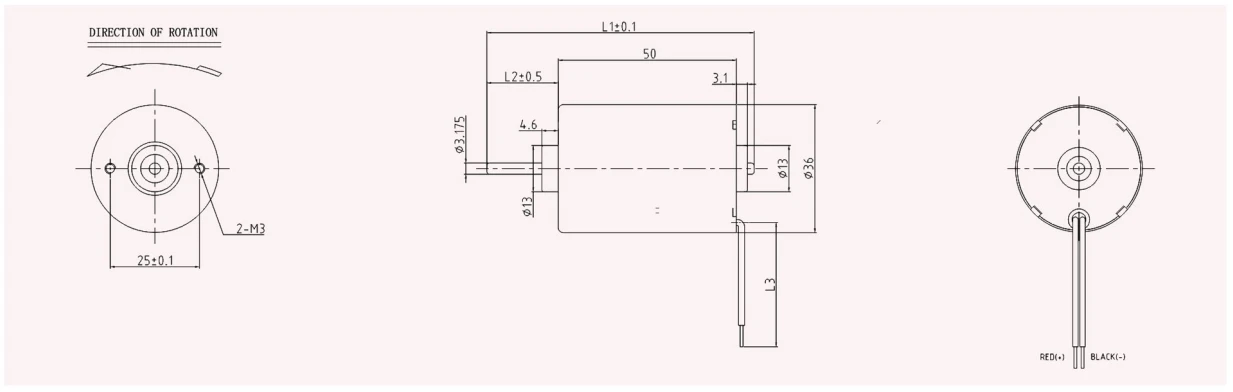

Product Size

Customized items

speed, voltage, output shaft, leads, lead terminals, etc. If you need supporting encoders, gearboxes, drivers, please contact us.

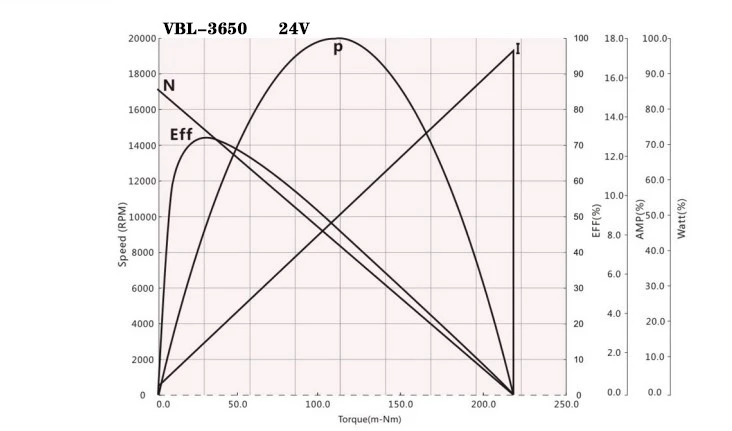

Performance Curve

The data provided above is solely provided for informational purposes; different versions of micro brushless DC motors may have different types and features.



Product Details

	100% actual photos

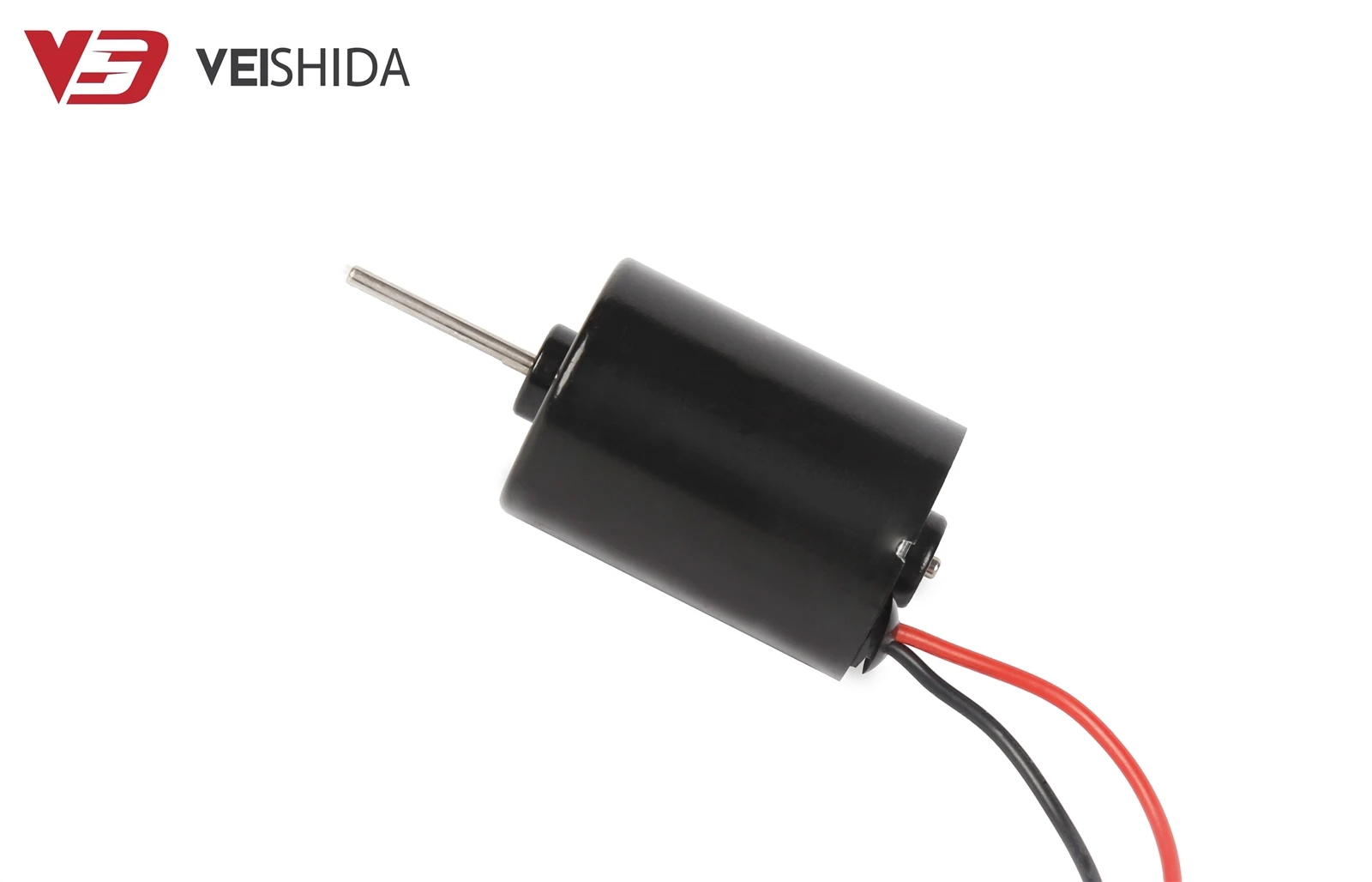

Rotor: consisting of a pure copper wire coiled around a high-quality iron core with outstanding temperature resistance. It also uses less energy and has a lower current resistance.		Bearings: The bearing is a hollow shaft that has undergone CNC processing to increase friction, improve transmission stability, and facilitate connection and fixing.
	100% actual photos

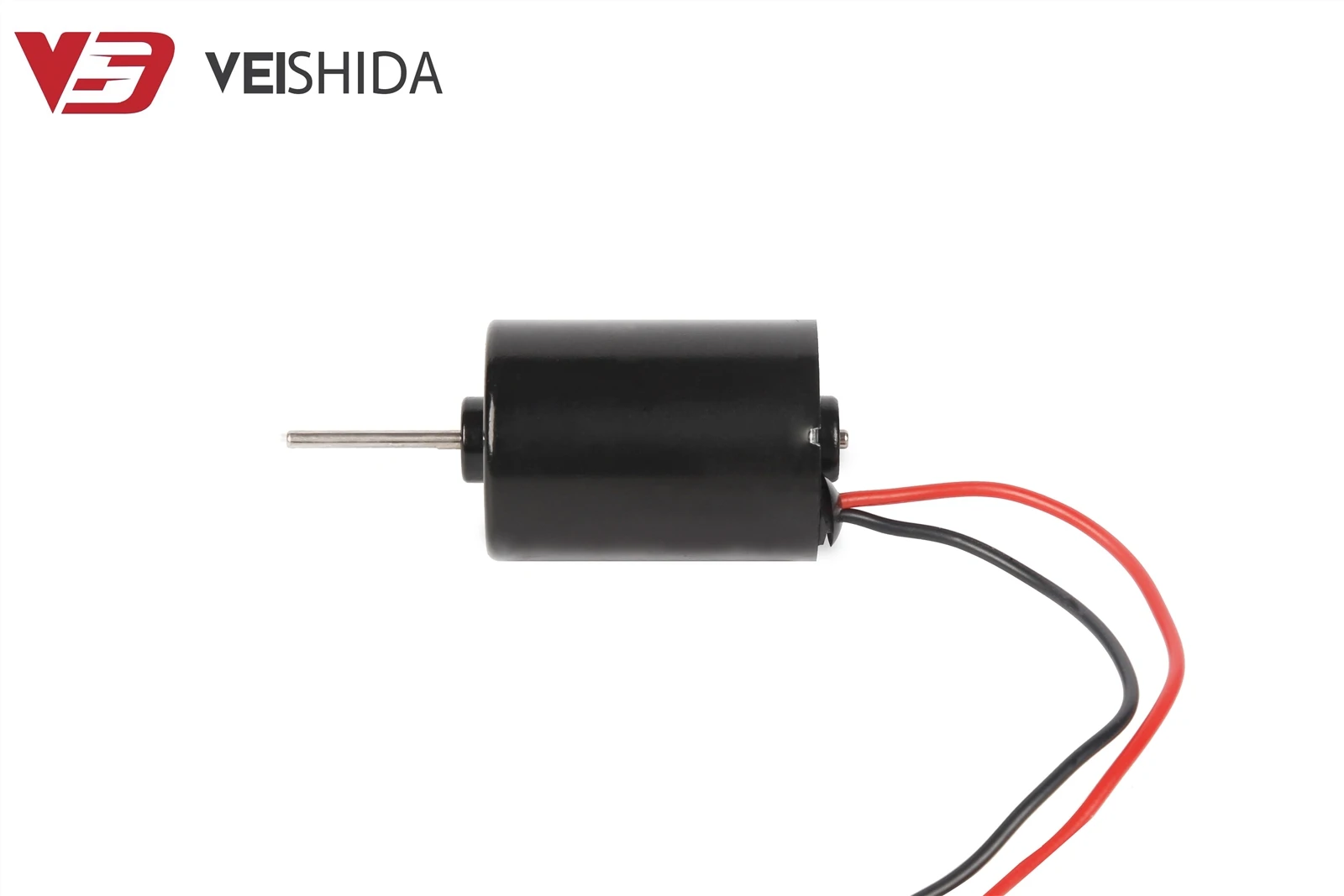

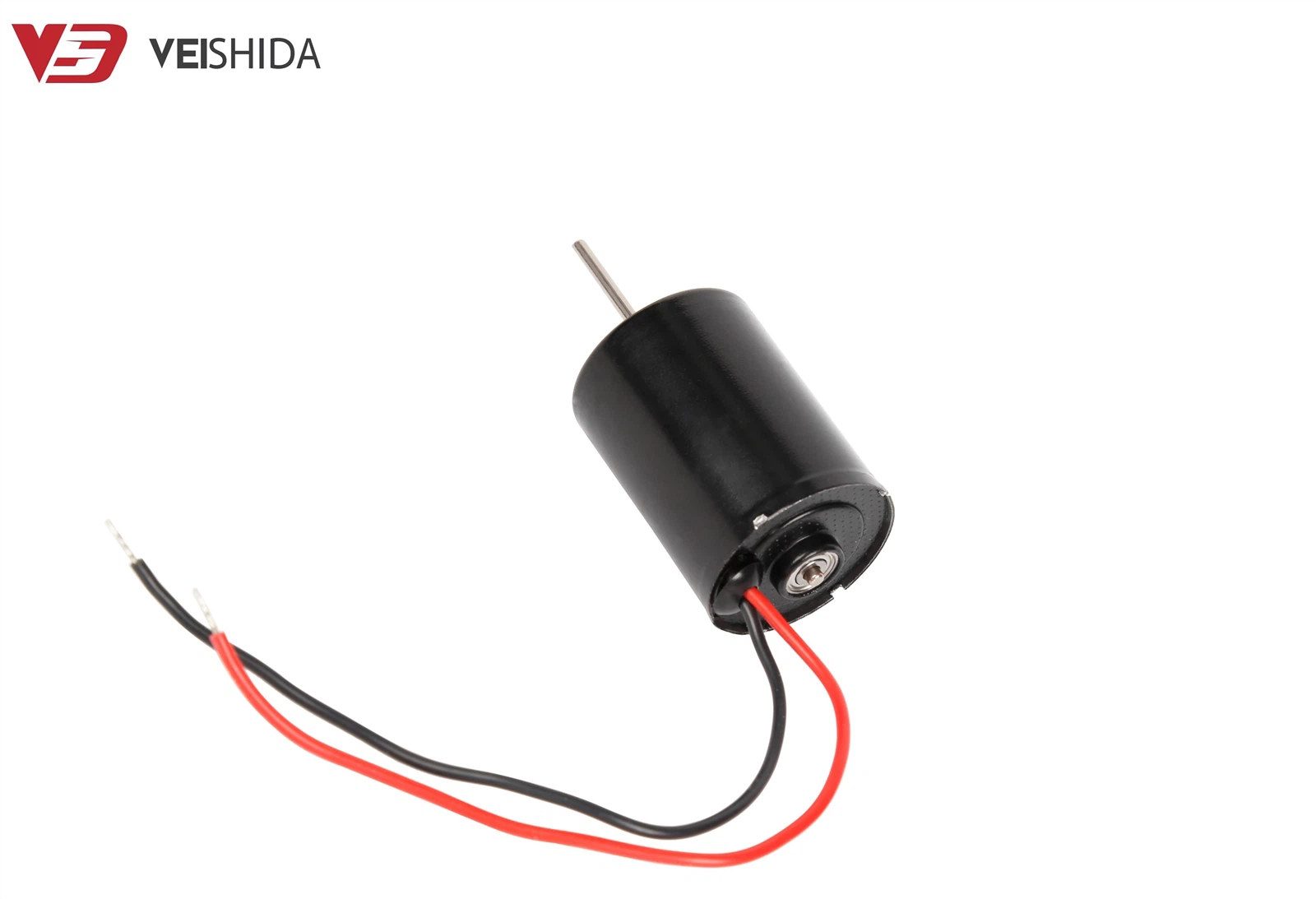

End cap: Fixed electronic rotor with heat dissipation, a higher degree of matching, and a longer service life using high-quality raw materials.		Chassis: Materials of the finest quality that are exceptionally hard, temperature-resistant, low-corrosion, low-wear, and low-rust resistance



Motor Description

1. This high speed DC 24V brushless motor has stable and reliable performance. Low noise, high speed, high efficiency, low resistance. Good quality and long service life.

2. The motor rotor adopts precision winding technology, and the power of the brushless motor is greatly improved. This better performance can significantly increase the operating efficiency of the motor.

3. The output shaft has good toughness and impact resistance, and the quality of the bearing is guaranteed, which prolongs the service life of the brushless motor and is durable.

4. Widely used in remote control aircraft, model aircraft, mobile home appliances, medical equipment, industrial equipment, commercial equipment, personal care, small appliances, coffee machines, milk tea machines, centrifuges, medical mixers, micro pumps, printers, projectors, ATMs machine, massager, etc.

5. Independent research and development team to meet your customized needs, automated production equipment, more than 50 production lines to meet your large-volume orders, and provide OEM/ODM services.

Company Strength

​

Along with cutting-edge technologies for research, development, and production, the Vshida Micro Motor Company also employs cutting-edge production management techniques. has achieved accreditation for both the ISO 9001:2015 and IATF16949:2016 quality management systems. The company's current manufacturing facility, which has a floor area of over 10,000 square meters, more than 500 employees, more than 300 sets of automation equipment, more than 40 assembly lines, 30 R&D personnel, and a daily output of roughly 200,000 motors, is set up to handle both large orders and particular customer requests.​

The company possesses a range of automated production tools, including automatic winders, automatic stator machines, and automatic soldering machines;

​

To ensure the highest level of quality, all motors have successfully passed a number of reliability tests and laboratory inspections, including noise tests, waterproof tests, life tests, crash tests, storage tests, salt spray tests, etc.

Product Certificate

​

It has thus far passed a number of global certifications and patent certifications in order to satisfy the demands of clients for different certificates.

Some of our partners

​

We are happy to work with you as a dependable partner in China. For a long time, we have dedicated ourselves to the micro motor business, providing products to the majority of European and American customers while also satisfying large-scale demand.

Why Choose Us

Application

Micro motors may be customized for a wide range of usage scenarios and are incredibly flexible. Get in touch with us if you have any special requests.

​

Transport Packing

​

Optimum carton dimensions and shock-absorbing foam packing. If you require any specific packing services, kindly contact us in advance.

Payment & Delivery

​



Other fields of application of high speed dc 24V brushless motor



Commercial equipment: ATMs, copiers, scanners, card issuers, currency counters, printers, vending machines, etc.
Medical equipment: medical mixers, centrifuges, medical pumps, etc.
Gaming: Game consoles, video games, optical drives, remote controls and electric toys, etc.
Household appliances: blenders, coffee machines, food processors, juicers, ice makers, soybean milk makers, etc., air purifiers, dehumidifiers, range hoods, washing machines, dryers, refrigerators, dishwashers, floor care, Whirlpool and more.
Lawn and Garden: Lawn mowers, snow blowers, trimmers, leaf blowers and more.
Personal care: hair clippers, hair conditioners, massagers, hair dryers, electric shaver, etc.
Electric tools: electric shavers, electric toothbrushes, micro pumps, valves, hand-held electric drills, electric drills, screwdrivers, grinders, polishing machines, saws, etc.
Cameras and Optics: video, cameras, projectors, radios, etc.



Please contact us so that we may provide drives, encoders, and gearboxes that are compatible. We will respond to your message within the next 24 hours.
